Audio Equipment

Yamaha QL5

Mix channels: 64 mono, 8 stereo
Busses: 16 mix, 8 matrix (Input to Matrix supported)
Local I/O: 32 in, 16 out
Fader configuration: 32 + 2 (Master)

Yamaha QL1

Mix channels: 32 mono, 8 stereo
Busses: 16 mix, 8 matrix (Input to Matrix supported)
Local I/O: 16 in, 8 out
Fader configuration: 16 + 2 (Master)

Mix channels: 16 mono + 1 stereo + 2 FX return
Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix, 18 Effects, GEQ on Mix 1-6 and ST channels
Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS) inputs, and 8 (XLR) outputs
Dante: 16 inputs, 16 outputs USB: 18 inputs, 18 outputs

Yamaha TF3

Mix channels: 40 mono, 2 stereo, 2 return
Busses: 20 Aux (8 mono + 6 stereo), Stereo, Sub Buses
Local I/O: 24 XLR/Jack in, 2 analogue RCA stereo line ins, 16 XLR out
Fader configuration: 24 + 1 (Master)
Fitted with Dante Card

Yamaha TF1

17 motor faders (16 channels + 1 master)
40 input mixing channels (32 mono + 2 stereo + 2 return)
20 Aux buses (8 mono + 6 stereo) + Stereo + Sub
Local I/O: 16 Combo Mic/line + 2x RCA Stereo + 16 XLR Out
8 Effects and 10 GEQ

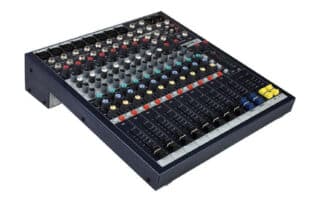

Soundcraft EPM-8 Sound Desk

Yamaha Rio 1608-D Stage Box

16 analog inputs and 8 outputs.
Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
Comprehensive display and local control of gain and other parameters.

Yamaha Tio 1608-D Stage Box

16 analog inputs and 8 outputs.
Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
Comprehensive display and local control of gain and other parameters.

Shure ULX-D 8Chn Rack

2x ULXD4Q Receivers (8Chns)
8x DPA 4088 Headsets, 8x DPA 4071 Lav Mics
8x ULXD1 Beltpacks, 2x ULXD2 SM58 Handheld Mics
Self contained rack with Dante-configured Primary/Secondary network switches
